The main components in BG114 tube making machine:
1. Uncoiler:
Structure type: Double-side 180orotary hydraulic expanding tightly to make steel strip going into accumulator freely.
Applicable range: 150-360mm steel strip width, 1.0-3.0mm thickness,
Φ800-Φ1200mm steel coil O.D., Φ450-Φ550mm steel coil I.D., Max.3000kgs steel coil weight.
2. Shearing and butt-welding machine, which insure double steel coil shearing tidily and then welding together and leveling weld seam.

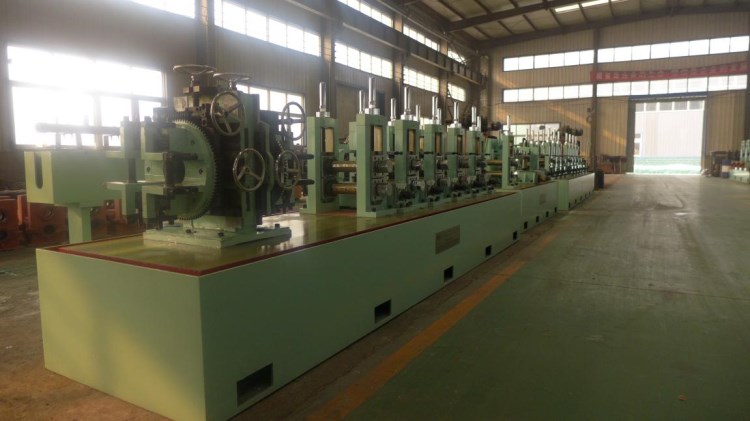

3. Forming, welding table and sizing unit:
Mainly roughly mill-forming steel strip and controlling weld seam,welded pipe by 600A Ar-arc welder and shaping pipe after welding and controlling size accuracy.

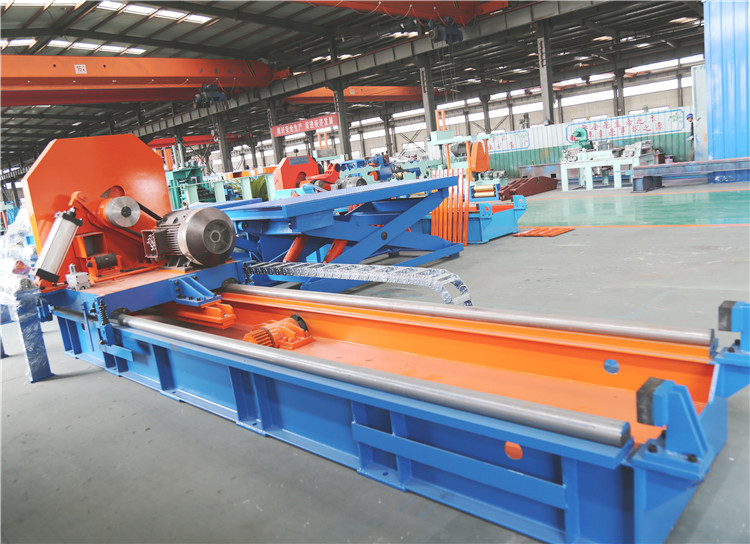

4. Pneumatic tracking cutting saw:
(1) Cutting method: Pneumatic tracking and automatic cutting
(2) Cutting thickness: δ1.0-3.0mm
(3) Cutting O.D.: Φ48-Φ114mm
(4) Cutting length: 4-8m
(5) Cutting motor: 15KW
(6) Cutting tolerance: ≤10mm

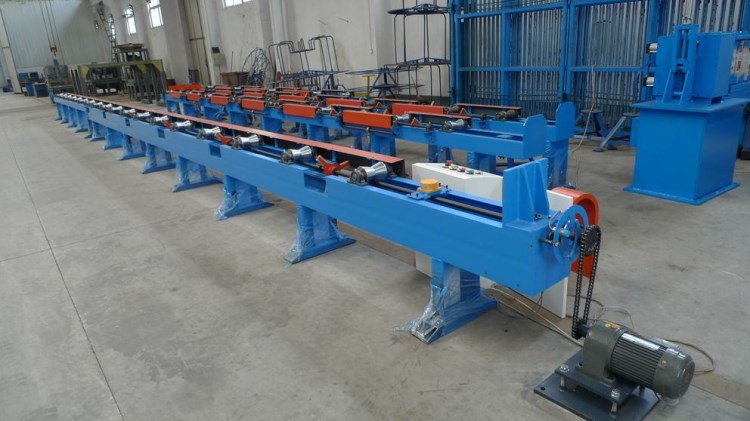

5. Run-out table
6. Electric controlling system (75HP-100HP)
