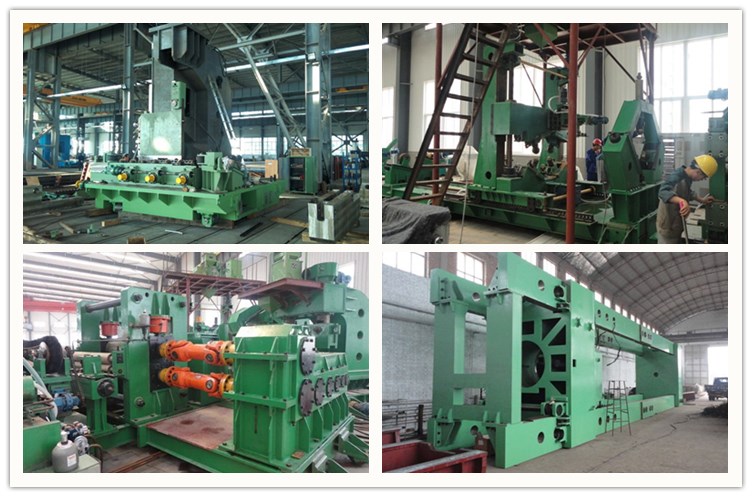

GEIT design and manufactur a range of types of SSAW pipe mill according to customer requirement. Ourφ630～φ3520mm Frontal-swinging Spiral Welded Pipe Line is used in the highest grade of steel coil X52 (Max) with thickness:δ=3-10mm and width_B=700-1650mm. Through the uncoiling, leveling , cutting ,forming , welding process, the φ630～φ3520mm Frontal-swinging Spiral Welded Pipe is produced. And then through chamfering, hydrostatic test, UT detection, X-ray detection etc ,the finish machine can satisfy the API-5L、ASTM、IS standard. Electronic control system adopts siemens PLC automatic control system,digital display system, DC speed control system of Continental European,variable-frequency speed control system of Delta etc. The SSAW pipe line has outstanding features like simple operation, convenient maintenance and high reliability.
SSAW pipe mill specification:
|
Main specification of diameter of φ630~φ3520 spiral welded pipe Line |
||||
|
S/N |
Item |
Specification |
||
|
Raw material specification |
||||
|
1 |
Raw material OD |
φ1200~φ1800mm |
||
|
2 |
Raw material ID |
φ500~φ780mm |
||
|
3 |
Coil width |
700~1650mm |
||
|
4 |
Material thickness |
3~10mm |
||
|
5 |
Coil material |
Q235，Q345B |
||
|
6 |
Curved teeth |
≤20mm/5m |
||
|
7 |
The tower coils |
≤60mm |
||
|
8 |
Max weight |
15 Ton |
||
|
Finished Pipe specification |
||||
|
9 |
Pipe diameter range |
φ630~φ3520mm |
||
|
10 |
Material thickness |
3~10mm |
||
|
11 |
Pipe length |
8~12（土0.5）m |
||
|
12 |
Forming angle |
40 o ~80o |
||
|
13 |
Transmission speed |
0.5~3m/min |
||
|
Welding part |
||||
|
14 |
Welder |
Take single wire automatic submerged arc welding |
||
|
15 |
Welding speed |
0.5~2.0m/min |
||
|
16 |
Inner and outside welder |
Take single wire automatic submerged arc welding |
||
|
17 |
Inner and outside welding speed |
0.5~1.5m/min |
||
|
18 |
Swing degree |
38 o ~82 o |
||
|
19 |
Rear axle swing degree |
土1.5 degree |
||
|
20 |
Year production |
25000 Ton / year |
||
