Helical Submerged Arc Welded Pipe (HSAW) mill line
Helical submerged arc welded (HSAW) pipes are made from HR coil, where the coil is welded spirally to give a shape of pipe through the HSAW mill line.
  • Description
  • Contact us

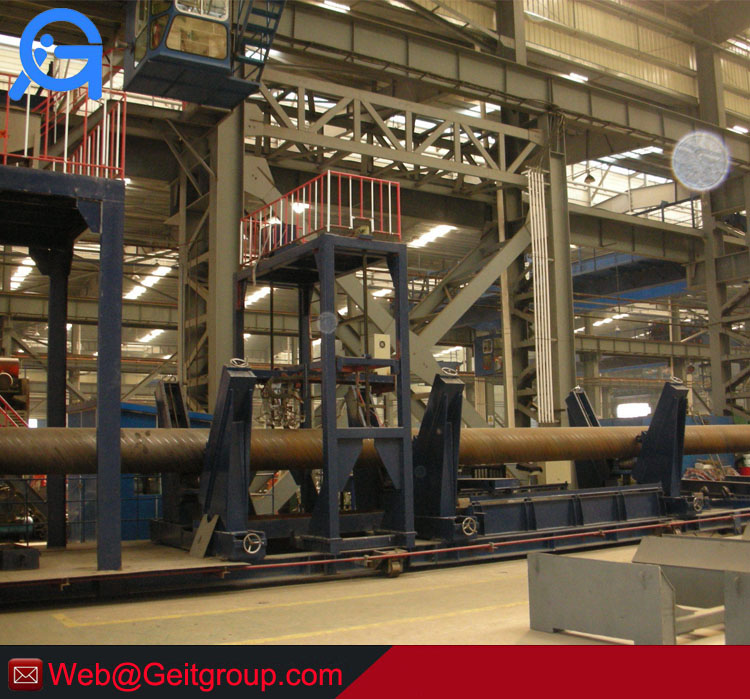

Helical Submerged Arc Welded Pipe (HSAW) mill line

Helical submerged arc welded (HSAW) pipes are made from HR coil, where the coil is welded spirally to give a shape of pipe through the HSAW mill line. One of the unique features of the HSAW mill is that it can manufacture pipes of same size or two different sizes simultaneously at a very high speed, thereby drastically reducing the delivery time. HSAW welded pipe mill line should make sure the pipes pass the water pressure test, welding seam cold bend test and tensile strength test.

We can provide the whole set of machines for producing various diameters of steel pipes.

item

Model

Pipe Size(mm)

Plate Width(mm)

Thickness(mm)

Coil weight(MT)

Installed capacity(KW)

Floor area(㎡)

1

LH-400

Φ219~Φ426

400~750

5-10

10

180

18×180

2

LH-500

Φ219~Φ529

400~800

5-11

15

200

18×180

3

LH-600

Φ219~Φ630

450~1050

6-12.7

20

240

21×180

4

LH-700

Φ219~Φ720

500~1250

5-14

20

260

21×180

5

LH-800

Φ219~Φ820

500~1300

6-18

30

380

24×180

6

LH-1000

Φ219~Φ1020

500~1300

6-20

30

390

24×180

7

LH-1400

Φ325~Φ1420

500~1560

6-22

30

400

26×180

8

LH-1600

Φ426~Φ1620

500~1560

6-25.4

40

510

30×180

9

LH-1800

Φ508~Φ1820

1100~1600

8-25.4

40

510

30×180

10

LH-2000

Φ508~Φ2020

1200~2000

8-25.4

40

530

30×180

11

LH-2400

Φ508~Φ2400

1200~2000

8-25.4

40

530

30×180

12

LH-3000

Φ508~Φ3000

1200~2000

8-25.4

40

530

30×180

Working process flow of helical Submerged Arc Welded Pipe (HSAW) mill line:

Loading coil→uncoiling→leveling→Shearing and butt welding→Rotary shearing→Edge milling→Delivering machine→Prebending and guide plate→Forming→Inside welding→Outside welding→Cutting→Pulling out→Χray testing→Hydraulic testing→End facing and chamfering→UT→Marking→Storing

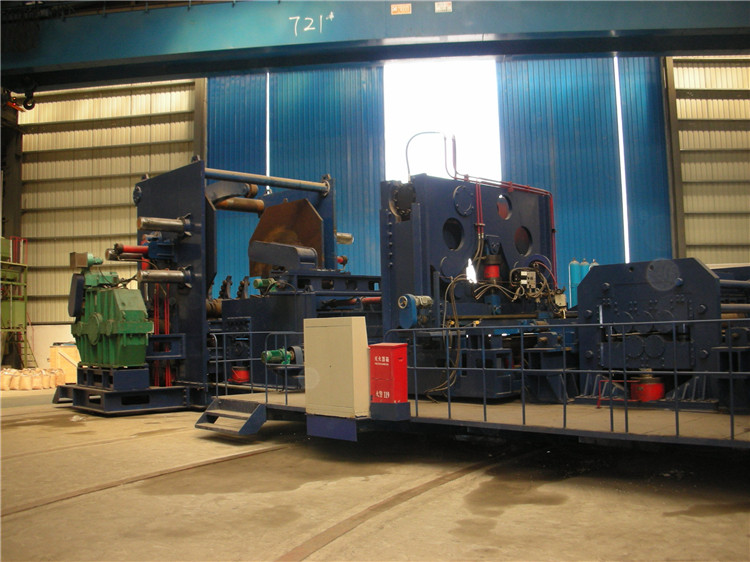

LASW-welded-pipe -mill.jpg
