Stainless steel tubes Mills for SS tubes and pipes

We have marked a distinct and dynamic position in the market by providing a high quality SS Pipe Making Machine that is widely used for making stainless steel  pipes in various industries. We provide this machine in numerous models and technical specifications for our clients to choose from. This machine is fabricated at our highly advanced production unit using optimum quality components following industry defined guidelines. Moreover, the SS Square Pipe Making Machine provided by us is highly appreciate among our customers for its smooth functioning and long service life.

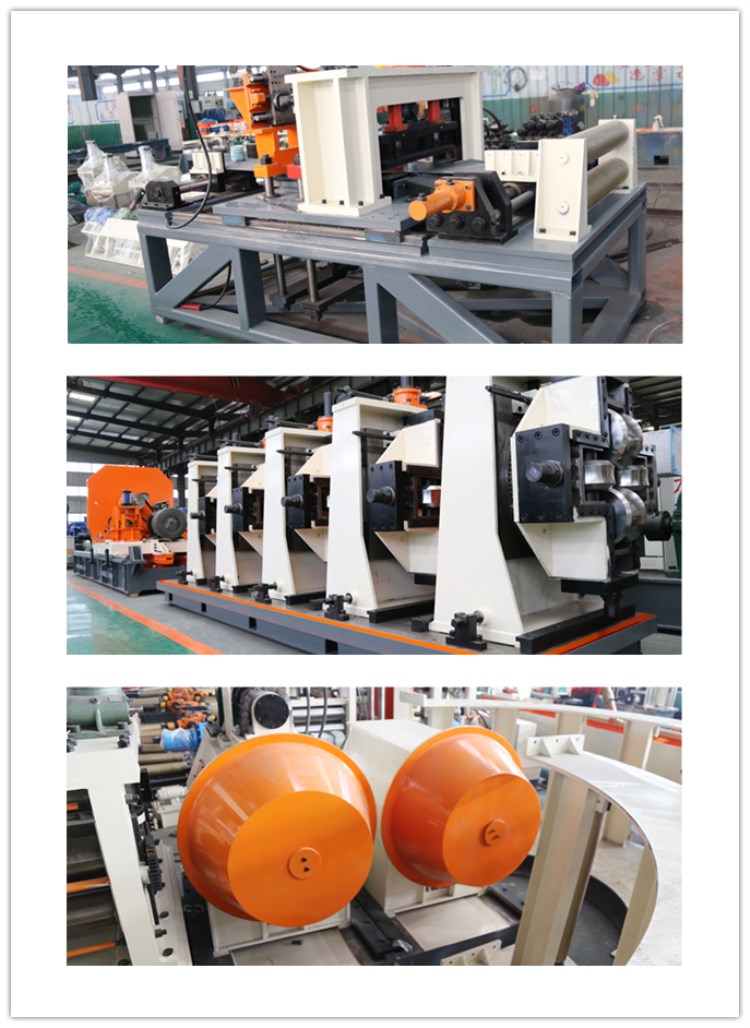

The machine is manufacturing stainless steel pipe/ tube under mass production. The process of machine works from flatting, forming, welding, annealing, polishing, sizing, straightening, finishing, cutting, and tube unloading. It can be done at one time. The machine adopts humanized design, featuring easy and safe to operate, labor saving, cost reduction, reducing lose and increase value of the product to reach high efficiency. Pipe/Tube specification of the machine : dia. 9.5mm - dia. 406.4mm(∮3/8”-∮16"). Stainless steel tube mill can make different type of stainless pipe/tube which are round, square, flat square type of pipe/ tube.

Features:

Sturdiness
Rust proof body
Rugged construction
High functionality



There are two types of the STAINLESS STEEL MACHINES
OD-SERIES STAINLESS STEEL TUBE / PIPE MAKING MACHINE
NB-SERIES STAINLESS STEEL TUBE / PIPE MAKING MACHINE


1. TOD-SERIES STAINLESS STEEL TUBE / PIPE MAKING MACHINE

The Tubes/Pipes made in this machine basically uses cold roll forming technology to give desired shape to the raw material strip. The strip grade can be 200, 300, 400 series. The roll formed open section of the strip is welded longitudinal by TIG welding process or in High Speed by Solid State High Frequency Induction Welder. Then the Welded Pipe/Tube seam is finished on line by tool or grinding process. The Pipe/Tube is then cooled down by coolant water.
There is a Sizing Section. The Sizing section of the Tube/Pipe Mill shapes the Tube/Pipe for desired perfect shape. Shapes of the Tube/Pipe made by this machine depends on the desire of the customer.

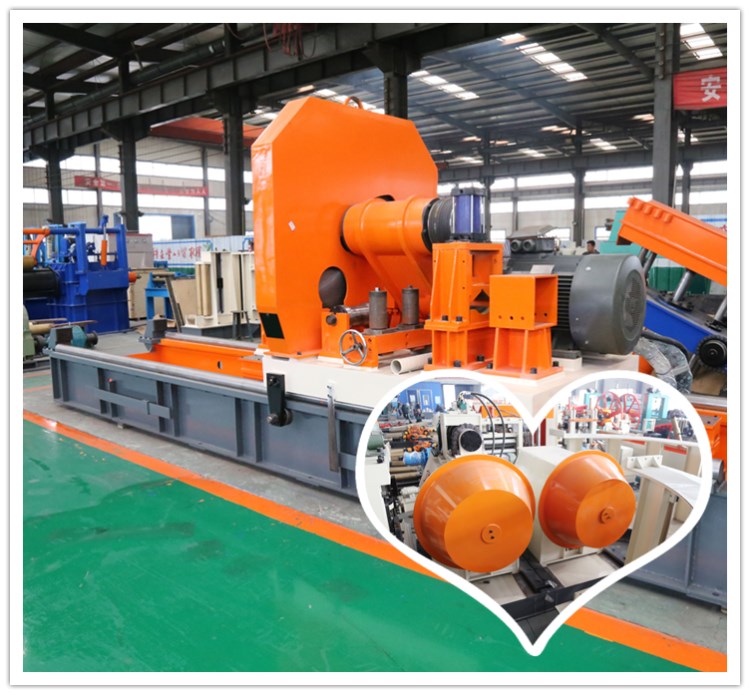

Machine has the capacity to make different shapes of pipe like Round/Circular, Rectangular as well as Square. There is a cutting section in the machine which is used to slice the Pipe/Tube. The cutting section cuts the pipe/tube for desired length online by automatic cutting car. The run out table takes out the cut length pipe/tube in the collection pit.
After all these process the manufactured products are taken out in the market for desired use.

2. NB-SERIES STAINLESS STEEL TUBE MILL / PIPE MILL

SE (Stainless steel) tube mill N.B. Series is called SE (Stainless Steel) Tube Mill N.B. Series because it uses SE (Stainless Steel) Coil for manufacturing of Tube/Pipe. The Tubes/Pipes made in this machine basically uses cold roll forming technology to give desired shape to the raw material strip.
The strip grade can be 200, 300, 400 series. The roll formed open section of the strip is welded longitudinal by TIG welding process or in High Speed by Solid State High Frequency Induction Welder. Then the Welded Pipe/Tube seam is finished on line by tool or grinding process. The Pipe/Tube is then cooled down by coolant water.
There is a Sizing Section also. The Sizing section of the Tube/Pipe Mill shapes the Tube/Pipe for desired perfect shape. Shapes of the Tube/Pipe made by this machine depends on the desire of the customer. Machine has the capacity to make different shapes of pipe like Round/Circular, Rectangular as well as Square.
There is a cutting section in the machine which is used to slice the Pipe/Tube. The cutting section cuts the pipe/tube for desired length online by automatic cutting car. The run out table takes out the cut length pipe/tube in the collection pit. After all these process the manufactured products are taken out in the market for desired use.



GEIT has installed the upgraded and advanced technological machines and equipment, which have provided better operational life to the products with performance efficiency. The company has maintained the standards of production and delivery by double checking the quality and performance of products under strict quality control programs.
The products are highly demanded in the market because of their sturdy construction and top class finishing. In addition to that, the company offers the correct customization of products according to the trending and latest requirements of our esteemed clients. The company has precisely modified the products for delighting the consumers and fulfilling their exact demands.

Stainless steel tubes and pipe can be used in these areas:

Textile Machinery
Chemicals
Fertilizers
Dairy and Food Processing
Power Plants
Pesticides
Construction
Modern Architecture
Pharmaceuticals
Sugar
Oil and Gas Processing
Water treatment facilities
Desalination
Synthetic Fibers
Pulp and Paper
Breweries
Ship Building
Refinery&Petrochemicals
Energy industries
As you can see, Stainless steel pipe applications are huge and have became a natural option for heat and corrosion resistance metal.
