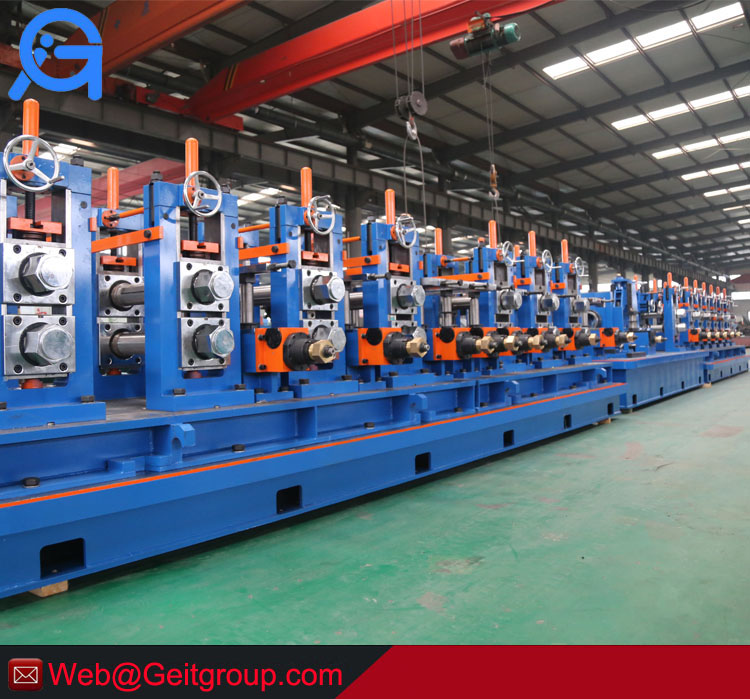

High frequency straight seam welded pipe mill
The high frequency straight seam welded pipe mill is used to level the fixed strip after slitting line, and entry it to forming machine, bend to open pipe by roller, melt the strip edges through the high frequency current, squeeze and weld the pipe to be closed by squeeze roll.
  • Description
  • Contact us

High frequency straight seam welded pipe mill
The high frequency straight seam welded pipe mill is used to level the fixed strip after slitting line, and entry it to forming machine, bend to open pipe by roller, melt the strip edges through the high frequency current, squeeze and weld the pipe to be closed by squeeze roll. The high frequency pipe mill is also called ERW pipe mill. Our products technology of full-automatic FFX HFW production line and multi function 250mm-500mm directly formed square pipe line are among the highest in the industry.

Forming&Sizing machine Models and main parameters

Models

Diameter

(mm)

Material

Width of

steel strip

(mm)

Thickness

of

steel strip

(mm)

Power

(kw)

HF

power

 (kw )

Forming

way

Rack mode

Molding

speed

(m/min)

HG610

273-610

Common

carbon steel

or

low alloy

steel

850-1920

6.5-16

315*2+

280*2

1200

Roll-

forming

Portal-

style

8-25

HG508

219-508

680-1590

6.5-16

200*2+

250*2

1200

8-25

HG406

165-406

500-1270

5.5-14

200*4

1000

10-30

HG325

140-325

430-1010

3-12.7

160*4

1000

10-35

HG219

89-219

350-680

2-8

200 160

800

10-40

HG165

76-165

180-520

2-6.5

160 132

600

20-50

HG114

50-114

145-355

2-5.5

200

400

20-60

HG89

32-89

60-880

1.5-4.5

185

300

20-100

HG76

20-76

60-240

1-4

160

300

20-100

HG60

17-60

50-185

1-3.5

132

200

20-100

HG50

12-50

40-150

1-3.25

110

100

20-120

HG32

12-32

38-102

0.5-2.5

75

100

20-120

HG20

8-22

28-65

0.4-1.5

37

100

20-120

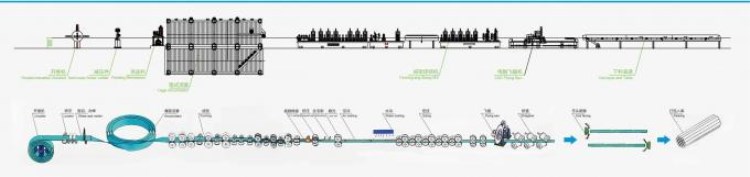

High frequency straight seam welded pipe mill process flow:
Loading coil→uncoiler→leveling→shearing and butt welding→accumulator→forming→high frequency welding→intermediate annealing→air cooling→water cooling→sizing→cutting by fixed length→end facing and chamfering→hydraulic testing→UT testing→marking→storing


erw pipe mill process flow.jpg

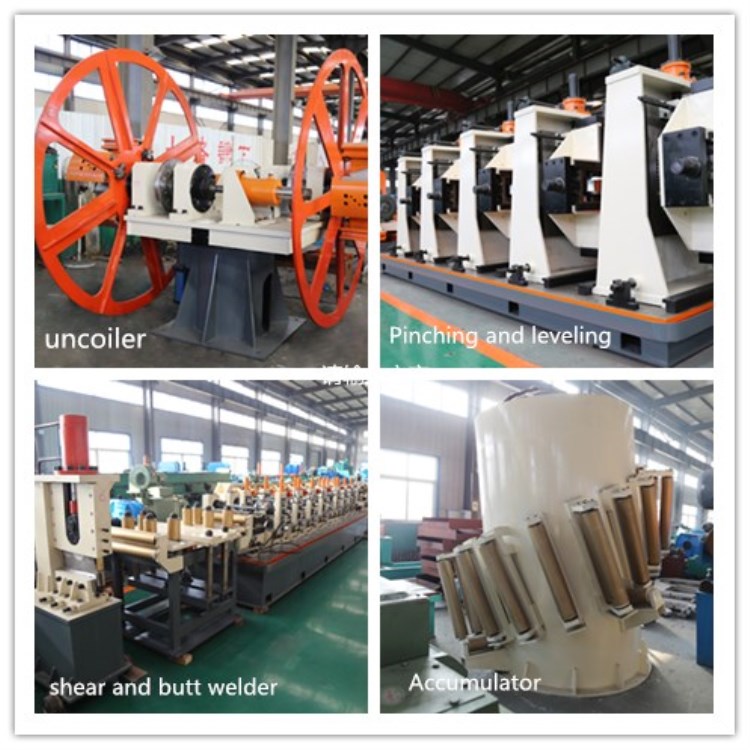

1.Uncoiler: mainly used for support steel strip and unfolding coils to supply raw materials for the production line.
2.Pinching and leveling machine:used to level the ends of steel strip after uncoiler, provide the convenience for the shear and butt welding operation.
3.Shear and butter welded: cut off the irregular ends of steel strip and weld the ends of the front and next strip, to ensure the continuity of production.
4.Accumulator: to store steel strip to ensure the mill line can produce continuously.

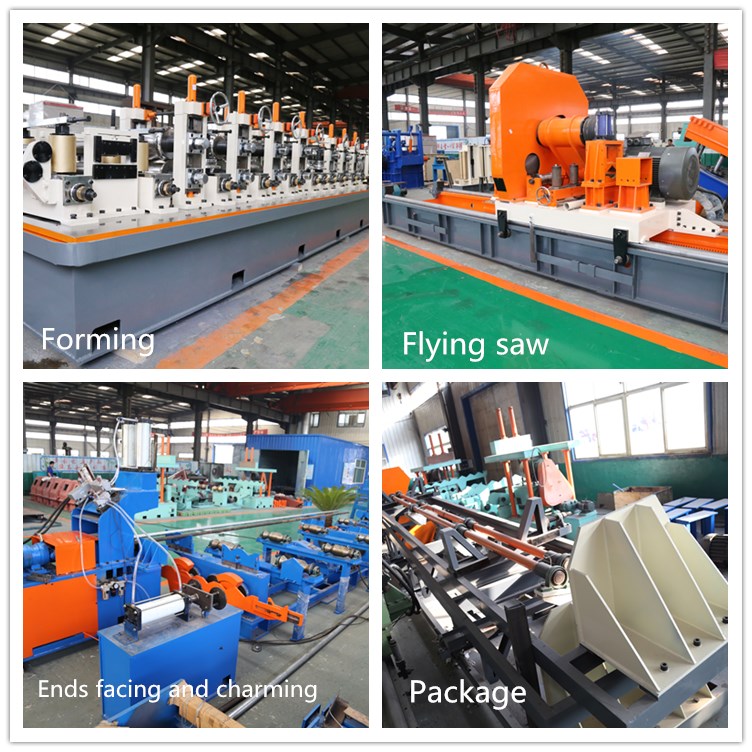

5.Forming, sizing: using proximity effect and skin effect of HF current to make the edge of the steel strip melt and extrude the steel strip into a closed pipe.
6.Cutting, Flying saw: it can achieve high precision automatic tracking and cutting by fixed length in the situation of pipes high speed motion.
7 End facing and chamfering: mainly used for milling the pipe ends and chamfering the edge of inside and outside.
8.Finished product:
