High precision HR&CR slitter machine

We supply slitting lines for steel, aluminium, copper, brass, bronze and other special metals and alloys. Strip width ranges between 200 mm and 2,800 mm and strip thickness may be between 40μm and 10 mm. Solutions for dimensions exceeding the mentioned range are subject to further discussions.

The perfect cut and the perfectly wound coil take the center of all our efforts with respect to slitting. GEIT group is technologically leading in many aspects and was always setting benchmarks that became synonymous for advanced slitting technology. Moreover, optimization of plant productivity and handling as well as energy efficiency become important for us to serve our customers even better. Solutions available are for instance:
1. Automatic sequences for loading and unloading of coils.
2. Automatic threading.
3. Machine adjustment according to strip properties based on recipes stored in the 4. automation system.
5. Automatic tool changing.
6. Reliable scrap removal.
7. Recovery of energy from coilers and brake rolls.
8. Automatic looping pit control.
9. Optimized deflector roll sizes according to material to be processed
10. Automatic (or semi-automatic) change of coiler mandrels and automatic clamping of the latter.
11. Suitable packaging lines for slit coils with different configurations and automation degrees.

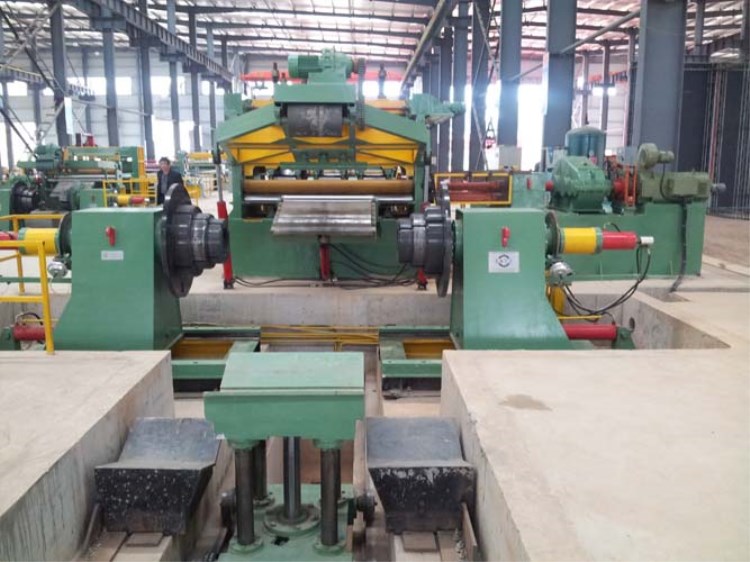

Work process of slitter machine:

HR&CR coil is loaded on the Coil Car by overhead crane. The coil car travels on rail lines by AC motor & brings the coil to the uncoiler. The lifting cylinder of the coil car centralizes the coil to the Uncoiler centre. The two opposed bodies of the uncoiler are mover towards each other so that the collapsed drums of both the bodies enter the ID of the coil. After proper positioning, the drums are expanded to hold the coil firmly. The coil car is lowered and taken back.

The uncoiler drive rotates the coil and brings the leading end in the feeding position. Snubber roll in lowered on the coil and the coil straps are cut. With the operation of peeler table & uncoiler drive, the leading end is fed in the Pinch Roll. The pinch roll is pressed and the drives of uncoiler & pinch roll take the leading end forward though shear. The end is cut if required. The leading end is further moved through vertical guides in to the slitter. As the slitter motor accepts the leading end, the pinch roll & snubber rolls are taken up and uncoiler drive is disengaged.

Slitter takes the strip further but now in slitted condition. All the slits are taken forward over the roller table & loop table, through line separator, pressure pad & deflector roll in to the Recoiler drum where the ends are inserted in the gripping slot. The ends are properly positioned in the slot as per the setting of Over Arm Separator and the drum is expanded.

The slitter and recoiler drives are inched forward together and a couple of turns are loosely wound over the drum. The pad is put in operation, loop table is removed back and slitter drive takes the slits in the loop. The line is put in RUN mode. The recoiler tightens the turns against the resistance of the pressure pad and the winding goes on. Both slitter & recoiler drive run in synchronization to keep the line speed constant and the strips are kept loose in the loop. As the coil builds up on the recoiler drum, its rpm goes down to keep the line speed constant. The same is effected by the speed sensing at the deflector roll by a rpm sensor. The over arm separator keeps moving up with the built up by a special hydraulic valve maintaining a set pressure on the coil.

The line goes on until the coil is completely wound over the recoiler drum. The trailing ends are clamped over the slit coils and overarm separator is lifted. The exit coil car is brought below the coil and lifted to support the coil weight. The drum is collapsed and the pusher plate is operated along with the coil car to take the coil smoothly out of the drum.

The slitted coils are removed by the overhead crane and the line is ready for the next coil.
