Thin gauge steel cut to length line
The without loop pit Cut To Length Lines can do uncoiling, leveling, measuring, cross-cutting to length and stacking work. It mainly includes uncoiler, leveler, measuring encoder, shearer, conveyor, stacker, hydraulic system, pneumatic system and electrical system, etc.,
  • Description
  • Contact us

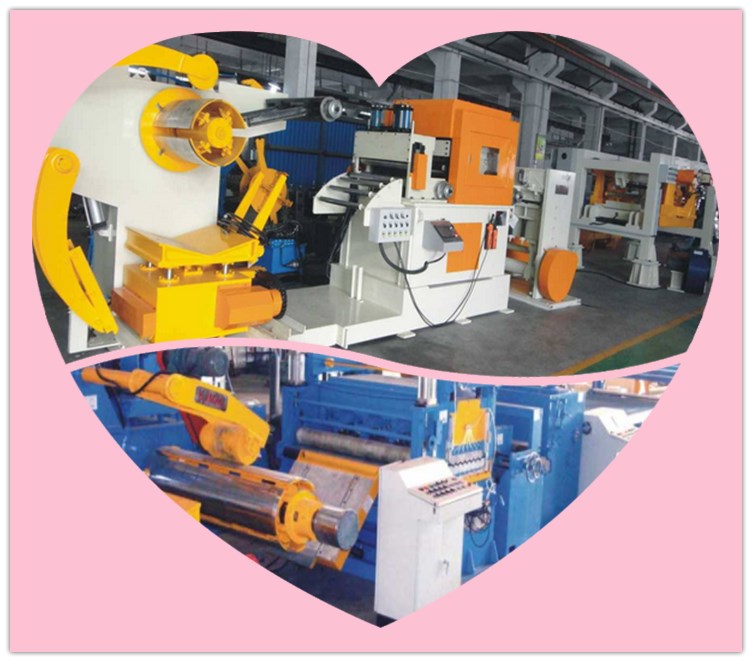

Thin gauge steel cut to length line:
The without loop pit Cut To Length Lines can do uncoiling, leveling, measuring, cross-cutting to length and stacking work. It mainly includes uncoiler, leveler, measuring encoder, shearer, conveyor, stacker, hydraulic system, pneumatic system and electrical system, etc., the line can make sure of accurate feeding and shearing. It can be widely used in cold or hot rolling carbon steel, tinplate, stainless steel and all the other kinds of metal materials with surface coating.

Cut to length line is controlled byPLC system. It has PLC controlled the length measurement. The information of length, shearing numbers and speed can be input to the PLC systems. When the need shearing number is reached the line can stop automatically. The line speed can be adjusted, It has a encoder with high precision, and whole line can work automatically and operate easily, smooth sheet can be made.

Thin gauge steel cut to length line technical data:

GTH20 series without loop pit,the thin steel low speed cut to length line

         Model

Sheet Thickness
(mm)

Coil Width(mm)

Leveling accuracy

Length of tolerance

Line Speed(m/min)

Coil Weight(t)

(mm/㎡)

(mm/m)

GTH20-2*400

0.3-2

150-400

2

±0.5

20

3、5

GTH20-2*600

0.3-2

150-600

2

±0.5

20

3、5

GTH20-2*800

0.3-2

300-800

2

±0.5

20

5、10

GTH20-2*1000

0.3-2

300-1000

2

±0.5

20

5、10

GTH20-2*1300

0.3-2

300-1300

2

±0.5

20

5、10、15

GTH20-3*400

0.4-3.2

150-400

2

±0.5

20

3、5

GTH20-3*600

0.4-3.2

150-600

2

±0.5

20

3、5

GTH20-3*800

0.4-3.2

300-800

2

±0.5

20

5、10

GTH20-3*1000

0.4-3.2

300-1000

2

±0.5

20

5、10

GTH20-3*1300

0.4-3.2

300-1300

2

±0.5

20

5、10、15

GTH20-4*600

0.5-4.5

150-600

2

±0.5

20

3、5

GTH20-4*800

0.5-4.5

300-800

2

±0.5

20

5、10

GTH20-4*1000

0.5-4.5

300-1000

2

±0.5

20

5、10

GTH20-4*1300

0.5-4.5

300-1300

2

±0.5

20

5、10、15

GTH20-6*600

0.6-6

150-600

2

±0.5

20

3、5

GTH20-6*800

0.6-6

300-800

2

±0.5

20

5、10

GTH20-6*1000

0.6-6

300-1000

2

±0.5

20

5、10

GTH20-6*1300

0.6-6

300-1300

2

±0.5

20

5、10、15

GTH20-6*1600

0.6-6

300-1600

2

±0.5

20

5、10、15



The steel cut to length line consists of:

1. Coil car

2. Double cone decoiler

3. Snubber Arm

4. Entry support peeler table

5. Straightener

6. Roller table

7. Side Guide Roller

8. The lever

9. End plate run out pinch roll

10. Hydraulic shearing machine

11. Stacking table

12. Hydraulic system

13. Pneumatic system

14. Electrical system of PLC control

Materials of thin gauge steel cut to length line supports:

CR steel, HR steel, Galvanized steel, stainless steel, pre-painted steel and aluminium.


The lines can be supplied with start-stop shears, flying shears, rotating shears or continuous direct feed. Air cushion, bomb-door type, electromagnetic or vacuum stackers. High-precision levellers of four, five and six heights, computer controlled. Edge trimming may be incorporated..
Totally computer-controlled with diagnosis, automatic coil feed and quality control.
GEIT is also leader in designing and supplying stretch levelers for thick strips. With this technology a much better flatness, totally free of inner trapped stresses, is obtained. This is specially interesting when the cut blanks are going to be reprocessed by laser cutters or plasma torches. The GEIT stretch leveler has many technical advantages that make of this machine the technical reference in this kind of processes. Moreover, it can be included in a Cut-to- Length line working in continuous mode.
