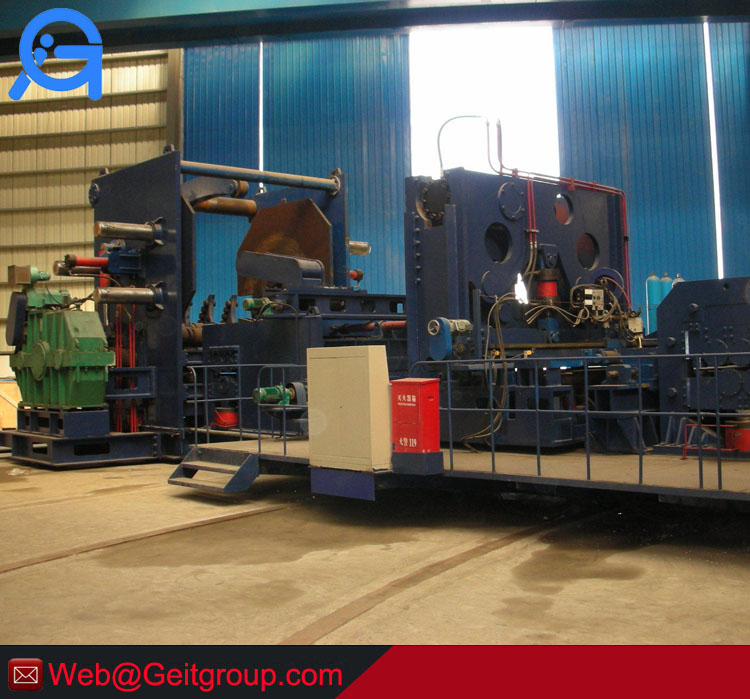

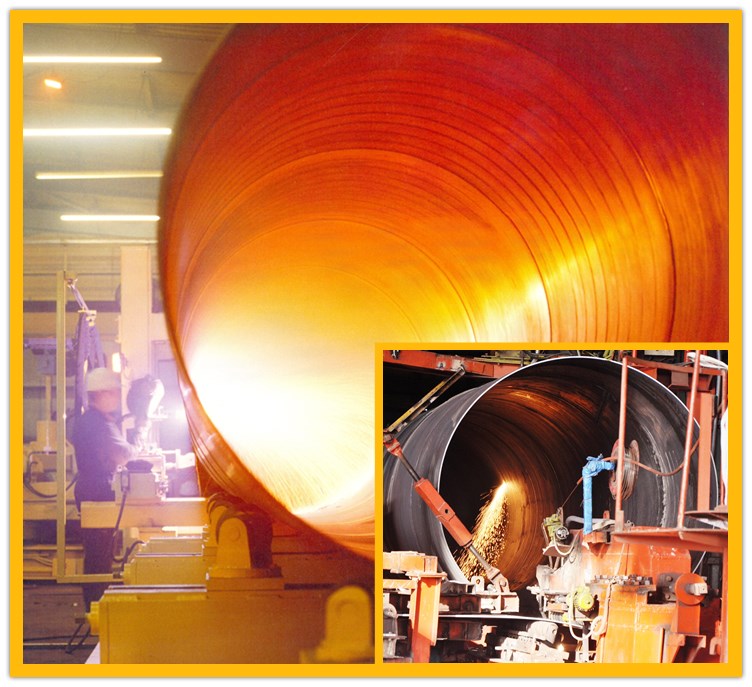

API Large spiral steel tube mill line
This pipe mill is used to process the strip into required spiral steel pipe in line with relative national standard by going through uncoling, leveling, edge shearing, forming and welding.
  • Description
  • Contact us

API Large spiral steel tube mill line

This pipe mill is used to process the strip into required spiral steel pipe in line with relative national standard by going through uncoling, leveling, edge shearing, forming and welding. Pipe produced can be used in different industries like low-pressure fluid transportation, gas pipeline, electric& heat power pipe network, industrial and construction.

Spiral steel tube usage:
1) high strength pertoleum& natural gas transportation pipeline;
2) low pressure liquid transportation pipeline, city coal gas and water drainage pipe;
3) piling pipe for project construction;
4) steel pipe for industrical structure;
5) other usages
Product quality:

Pipe product of this unit can meet with API-5L standard and GB/T3091-2001 standard.

Features:
A. Be adapted with hydraulically roll-and-shear cutting which makes cutting edges smoothly and without burrs. Process is no sparks and noises, even safety.
B. Be adapted with fixing finalized mold which makes the dimensions of ducting precisely and unite, also process is even stable and speedy.
C. Exchanging different sizes molds then will be convenient for adjusting spiral angle, being adapted with automatic way for better agility and precision.
D. Be adapted with hydraulic presure sytem for achieving feeds, locking, cutting turn-down movements ect.
E. Running for material package, it will run after hydraulic pressre has pressed the materials. Be flexible for adjusting pressure which ensures quality for ducting according to different materials, thickness, and dimension.
F. Carrying out locking. Be adapted with Manos tat for controlling occluded which assures the quality of seaming.
G. Collocating of hydraulic pressure system, using with energy saving, safety and easy going measure etc.
H. Hydraulic pressure adapts constant power variable axial piston pump for energy saving.
I. Overall valve, redactor valve for ensuring stable system pressure.
J. Add-in accumulator, reduces ripple controlling of hydraulic pressure system for even stable.
K. Be adapted with two-way throttle valve which makes movement parts for easy adjust.



API Large spiral steel tube mill line working process :
Raw Steel Strip Coil → Uncoil → Head opening → Flattening → Centering → Shear → Butt Welding → Centering → Edge Sheared →  Centering →Delivery →Pre-bending →Guide Plate →Forming →Internal and External Welding → Cutting Off → Steel Pipe Output and Sortout → Deslagging → Appearance test → Repair welding → Trimming → Hydro-testing → UT → End facing & Beveling → Finished product testing  → Put in storage.

Types of API Large spiral steel tube mill line for your choose:

item

Model

Pipe Size(mm)

Plate Width(mm)

Thickness(mm)

Coil weight(MT)

Installed capacity(KW)

Floor area(㎡)

1

LH-400

Φ219~Φ426

400~750

5-10

10

180

18×180

2

LH-500

Φ219~Φ529

400~800

5-11

15

200

18×180

3

LH-600

Φ219~Φ630

450~1050

6-12.7

20

240

21×180

4

LH-700

Φ219~Φ720

500~1250

5-14

20

260

21×180

5

LH-800

Φ219~Φ820

500~1300

6-18

30

380

24×180

6

LH-1000

Φ219~Φ1020

500~1300

6-20

30

390

24×180

7

LH-1400

Φ325~Φ1420

500~1560

6-22

30

400

26×180

8

LH-1600

Φ426~Φ1620

500~1560

6-25.4

40

510

30×180

9

LH-1800

Φ508~Φ1820

1100~1600

8-25.4

40

510

30×180

10

LH-2000

Φ508~Φ2020

1200~2000

8-25.4

40

530

30×180

11

LH-2400

Φ508~Φ2400

1200~2000

8-25.4

40

530

30×180

12

LH-3000

Φ508~Φ3000

1200~2000

8-25.4

40

530

30×180


The Spiral steel tube mill designed and manufactured by our company have formed a very diversified and serialized product range.From a forming process's perspective,the products can be divided into:External Control Forming and Internal Control Forming. From a mill production process's perspective,they can be divided into: Accumulator Pit Stored Welding Material,or Backward Swing Machine Unit and Forward Swing Short Machine Unit in Welding Tractor style with continuous production capability.Diameter range of final pipe line products could cover anything between Φ219mm and Φ3500mm.Our products meet API-5L,GB9711.1,GB9711.2 Standards.

Our company also assists pipe line manufacturing firms in layout,planning and design of products and manufacturing process,and we also supply complete stes of equipment for spiral welding pipes production.
