Stainless steel pipe and tube production line

GEIT is specialized in designing and producing machines for the production of Stainless Steel tubes. Stainless Steel tubes are formed and welded on tube mills. As the tube making process lends itself to automation, we can offer full lines where tubes are formed, welded, cut, straightened, punched, edged folded and heat treated in line.

The SS pipe productions lines are suited for small diameters of tube (between 6 and 25 mm) with thin wall thickness (0.4 to 1.5 mm).
Tubes produced on GEIT's tube mills are characterized by high quality and standards.

Machines can be equipped with single torch TIG, multi cathode TIG torches or Laser welding sources, depending on the wall thickness and customer needs.

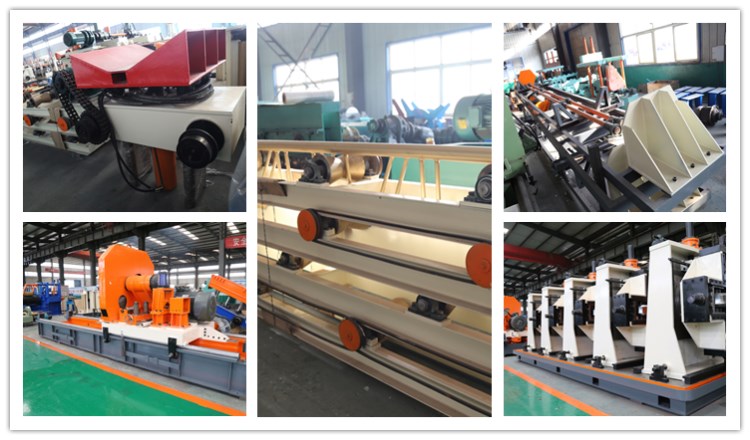

Machine for stainless steel pipe and tube:

1. Forming and Welding Machine (Stainless Steel Tube)
The machine is designed for welding of stainless steel strip to form tube.
The finished stainless steel tube will be appropriate for further processing into capillary tubes forhypodermic injection needles. The raw material used will be stainless steel strip
AISI 304 grade, soft BA, elongation min 40%, tensile strength 53kg/mm2, max.HV200.

2. Floating Drawing Machine (Stainless Steel Tube)
Floating plug drawing machine is designed for drawing of the ø 0.04mm tube with
0.20mm wall thickness into ø 0.10mm, ø 0.13mm, ø 0.15mm thickness, etc.

3. Sinking Drawing Machine (Stainless Steel Tube)
It is designed for sinking of stainless steel tubes to draw needle tubes to ø 0.36mm ~ ø 2.00mm diameter.

4. Annealing Machine (Stainless Steel Tube)
It is designed for proper heat treatments of the stainless steel tubes. The annealed tubes will be
further processed by sinking machines.
5. Annealing Re-coiler

6. Straightener

It is designed for straightening of the stainless steel tubes and equipped with automatic cutter to
cut off to the length of two meters or desired length of tubes.



Stainless Steel Pipe and Tube Manufacturing Process:
1. Rolling and welding
Firstly, the stainless steel strips are made to experienced different quality checks and are trimmed at edges. They are then sustained to the tubes plant by stainless steel funnel producers in India. The strips go through the quantity of rollers according to the required size. In the tubes-process, the strip is bit by bit changed over into the tubular shape. The fitted welding machine is then used to weld trim edges of the strip utilizing TIG welding process.
2. The cleaning and warming stage
The seamless carbon steel tube along these lines fabricated are sliced to the required lengths relying on the mechanical interest. These stainless pipes and tubes are then subjected to cleaning to expel the soil. Further, a warmth treatment is given to these moved pipes and tubes to evacuate the burdens that may happen because of welding and arrangement forms. Heat treatment is given on the persistently moving hearth heater.
3. Icy drawing process
Now and again, the required size may not be acquired from the plant straightforwardly. At that point, the cool operation procedure can be utilized to get the coveted size. In frosty drawing process, the tubes or pipes are covered with oxalic and cleanser arrangement. This arrangement goes about as an ointment to diminish contact while frosty drawing operation. Exposed to the harsh elements drawing process, the tube or pipe is drawn over the seat utilizing Die plugs.
4. Completing procedure
The drawn-out tube or ss channel is then subjected to cleaning, heat treatment, pickling and rectifying. The electronic ink plane checking machine is utilized to do the stamping on the completed pipes or tubes. The channel or tube is set apart with grade of material, size, heat number and the stamp of outsider examination before going on to stainless steel funnel exporters. The stainless tubes or pipes subsequently created will experience certain testing and quality checks.


GIET pipe equipment factory is a professional manufacturer of stainless steel pipe making machines and concentrates on the research and development, design, production, sales and supporting services. Our company conducts with modern managerial regulations and adopts imported precision mechanical processing machines. What’s more, with continuous innovation, higher product quality and upgrading after-sales services, it helps gain large number of loyal customers from all over the world. Our products are exported to South America, Eastern Europe, India, Indonesia, Japan, South Korea, Malaysia.
