BG76 Stainless Steel ERW Welding Tube Mill/Pipe Making Machine
Summary for BG76 stainless steel erw welding tube mill/pipe making machine: This equipment is specially used for producingΦ25-Φ76mm, δ1.5-2.5mm stainless steel straight seam welded pipe. It made by refined materials in high precision and equipped with fixed length cutting saw. The main machine includes
  • Description
  • Contact us


BG76 Stainless Steel ERW Welding Tube Mill/Pipe Making Machine

1.1 Summary for BG76 stainless steel erw welding tube mill/pipe making machine
This equipment is specially used for producingΦ25-Φ76mm, δ1.5-2.5mm stainless steel straight seam welded pipe. It made by refined materials in high precision and equipped with fixed length cutting saw. The main machine includes forming, welding, sizing and straightening device. The composition of equipment is from uncoiler to fixed length-cutting saw. Rolling speed can be adjusted correspondingly within suitable range of pipe diameter and wall thickness.

1.2 Applicable material:
(1)Material: SUS302 stainless steel strip.
(2)The thickness of steel strip: 1.5-2.5mm (As per GB708-88)
(3)The width of steel strip: 80-240mm (±0.2mm)
(4)I.D. of steel coil: Φ450-Φ550mm
(5)O.D. of steel coil: Φ800-Φ1500mm
(6)Maximum weight coil: 2500kgs

1.3 Dimension range of processing steel pipe:
(1) O.D.: Φ25-Φ76mm
(2) Wall thickness: 1.5-2.5mm (Square and rectangle pipe≤2.0mm)
(3) Length: 4-8m

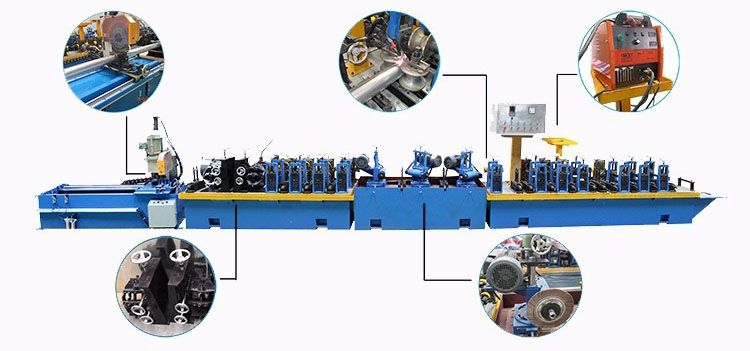

BG76 Stainless Steel ERW Welding Tube Mill/Pipe Making Machine Details:

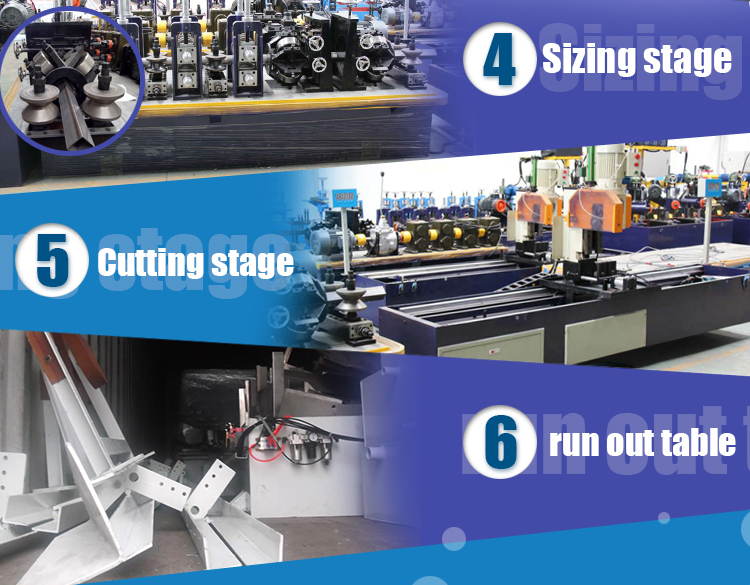

BG76 Stainless Steel ERW Welding Tube Mill/Pipe Making Machine Process:

BG76-Stainless-Steel-ERW-Welding-Tube-Mil-process-1.jpgBG76-Stainless-Steel-ERW-Welding-Tube-Mil-process-2.jpg

BG76 Stainless Steel ERW Welding Tube Mill/Pipe Making Machine Applications:
