High precision machine unit for stainless steel welded pipe

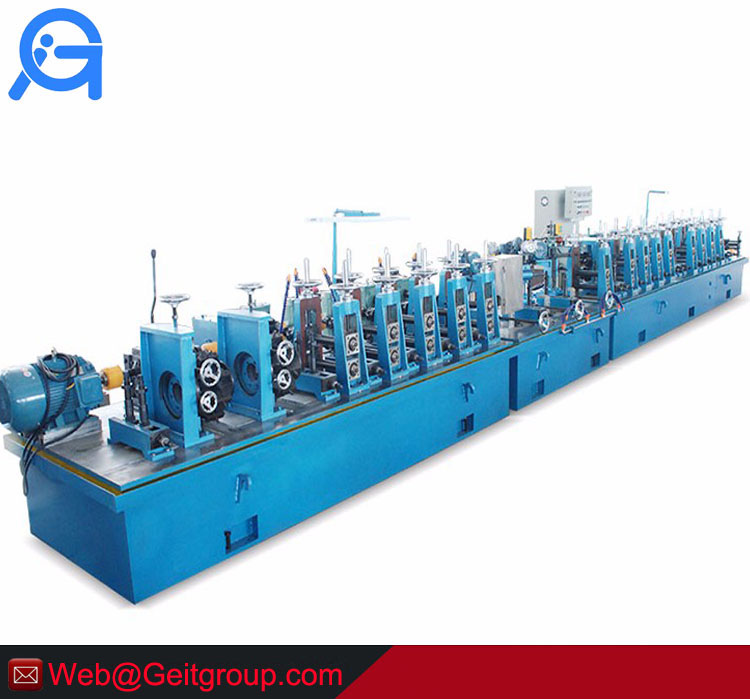

This machine unit is specially used for producing round (Square and rectangle pipe≤2.5mm )stainless steel straight seam welded pipes. It made by refined materials in high precision and equipped with fixed length fly saw.
  • Description
  • Contact us

High precision machine unit for stainless steel welded pipe

This machine unit is specially used for producing round (Square and rectangle pipe≤2.5mm )stainless steel straight seam welded pipes. It made by refined materials in high precision and equipped with fixed length fly saw. It is composed of main machine includes uncoiler, leveler, forming, welding ,sizing and straightening device. The machine is equipped with solid and rigid structure, and adopts humanized design with features of easy and safe to operate.The rolling speed can be adjusted according to the pipe diameter and wall thickness.

The work process as follow for reference:

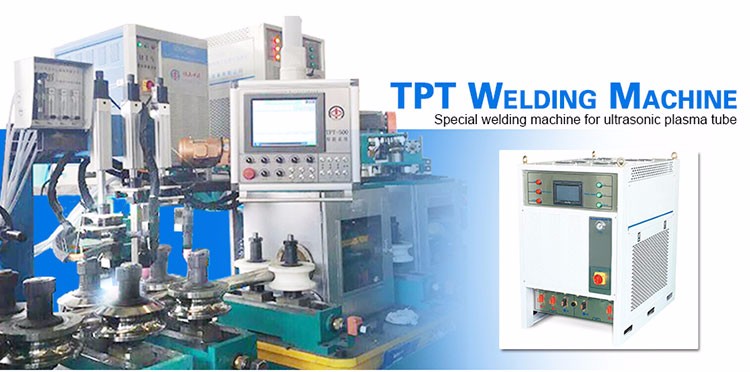

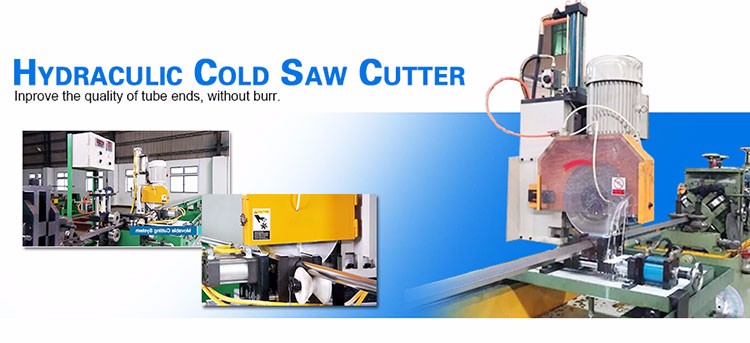

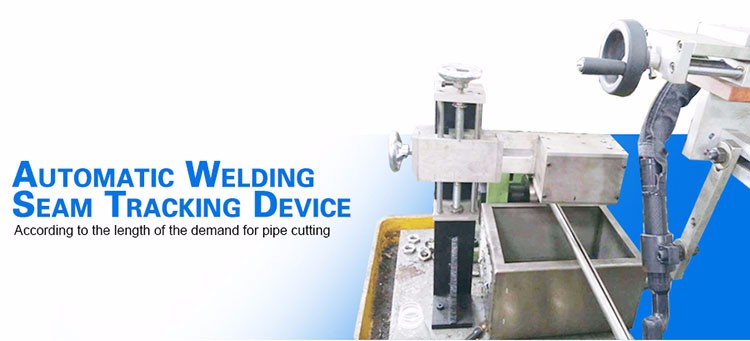

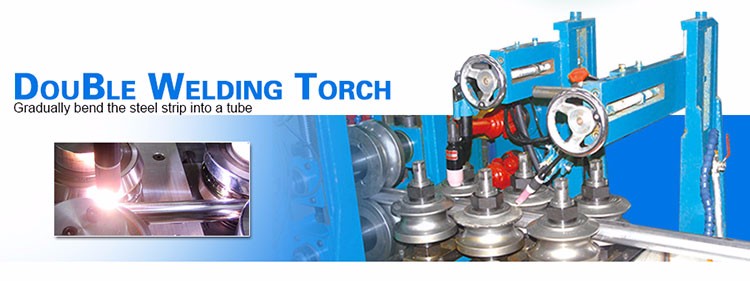

Raw material (steel coil)→uncoiling → shearing and end welding→non-power leveling→mill-forming→TIG welding and plasma welding→Polishing burrs outside of weld seam →→ cooling → sizing → roughly straightening → fixed length cutting → finished pipe →run-out table





Model of machine units for stainless steel welded pipe:


Model

BG30

BG40

BG50

BG60

BG80

BG100

Scope of pipe diameter(mm)

φ6-φ25

φ12-φ38

φ25-φ63

φ38-φ76

φ60-φ159

φ129-φ325

Work speed(m/min)

0.5-6.0

0.4-6.0

0.4-4.0

0.4-4.0

0.3-3.0

0.3-2.0

Maximum thickness of pipe(mm)

1.5

2.5

3.0

3.5

5.0

8.0

Horizontal axis diameter(mm)

φ30

φ40

φ50

φ60

φ80

φ120

Vertical axis diameter(mm)

φ20

φ25

φ30

φ40

φ55

φ75

Main motor power(kw)

4×2

5.5×2

7.5×2

11×2

15×2

22×2

Black solid fusion power(kw)

80

100

160

200

300

500

Size of unit (m)

20.5×0.9

22.5×1.1

24×1.3

25×1.5

33×1.9

43×2.7
