RT50 ERW Carbon Steel Tube Mill For Pipe Welding Machine
RT50 ERW carbon steel tube Mill for pipe welding machine GEIT GROUP offers almost 30 standard models, covering range from 3/8’’(8mm) up to 10’’(273mm) diameter (corresponding square & rectangular tubes) and wall thickness from 0.3mm up to 12.7mm, also accept customized machines.
  • Description
  • Contact us

RT50 ERW Carbon Steel Tube Mill For Pipe Welding Machine

RT50 ERW Carbon Steel Tube Mill For Pipe Welding Machine Product Show
RT50 ERW Carbon Steel Tube Mill For Pipe Welding Machine

Basic technical parameters:

1.1. Raw material & Final product:

Raw material

Cold / hot rolled carbon steel (δb≤520MPa,δs≤345MPa)

Description of raw material

1. Thickness of steel strip:  0.8-3.0 mm

2. Width of steel strip:  62-283 mm

3. Coil I.D: Φ450-550 mm

4. Coil O.D.: Φ800-Φ1200mm

5. Max. coil weight: 200kgs

Final product

Pipe

Description of final product

1. Diameter of pipe:  Φ20-Φ90 mm

2. Wall Thickness of pipe:  0.8-3.0 mm (square pipe≤ 2.5  mm)

3. Length of the final pipe: 4-8m

1.2 Work condition

Warehouse/Workshop

Dimension(L x W): 30 x 4.5 meter

Power supply & Installation power

3-phase, 380 V, 50 Hz

1.3 Energy consumption

Installation power

200KW Installation power

High-frequency power

Solid state 200 KW

1.4 Main commercial terms

Payment term

30% as down payment by T/T; 70% by T/T before delivery and after inspection;

Delivery time

50 working days since the date of receiving down payment

Packing

Iron pallet

2*40GP Containers

Warranty period

12 months since date of bill of lading

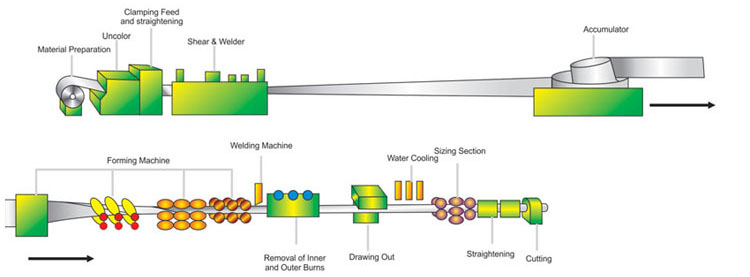

RT50 ERW Carbon Steel Tube Mill For Pipe Welding Machine Process
RT50 ERW Carbon Steel Tube Mill For Pipe Welding Machine

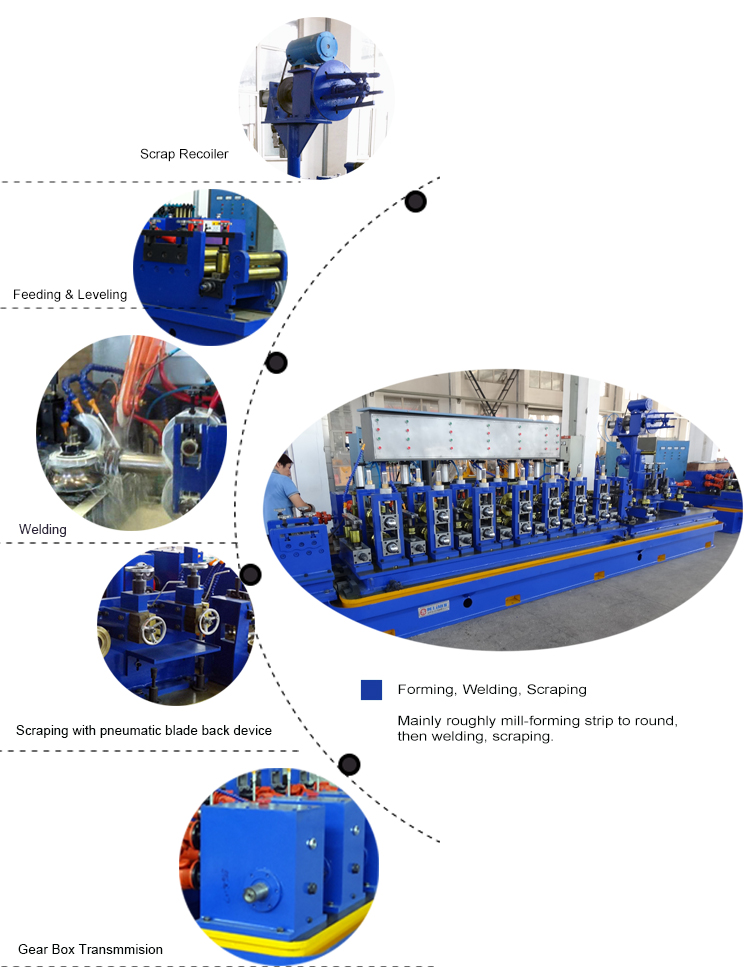

RT50 ERW Carbon Steel Tube Mill For Pipe Welding Machine Details
RT50 ERW Carbon Steel Tube Mill For Pipe Welding Machine
RT50 ERW Carbon Steel Tube Mill For Pipe Welding Machine Application
RT50 ERW Carbon Steel Tube Mill For Pipe Welding Machine
1. Water pipe
2. Heating pipe
3. Low-pressure process pipeline
4. Low pressure fire fighting pipeline
5. Sewage Pipes
6. Steel Scaffolding Pipe
7. Wire and cable protection pipe
8. Structural support Steel Pipe
9. Industrial Steel Pipes
10. Decoration Pipe
11. Oil & Gas Pipes
