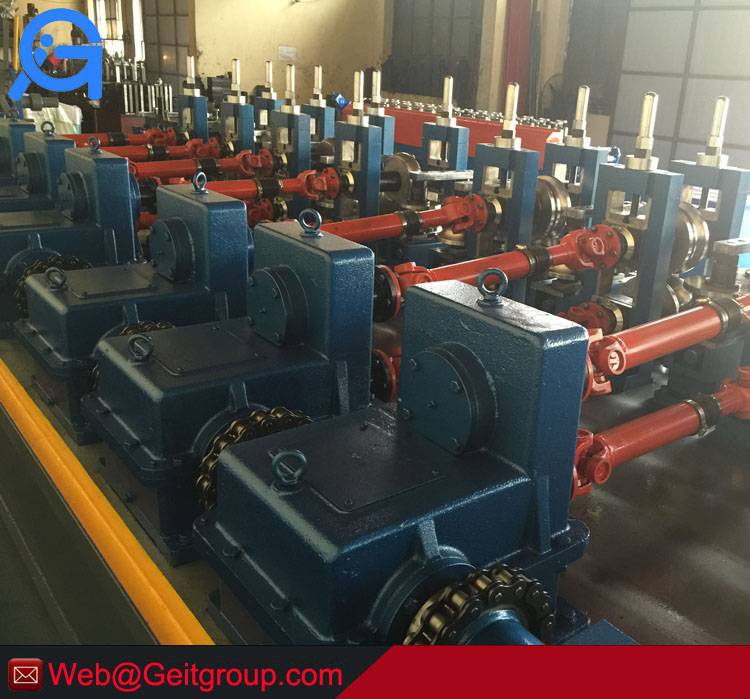

Stainless Steel Pipe Making Machine:

GEIT expertise in this domain of Stainless steel pipe making machine, Stainless steel tube mill, Stainless steel pipe mill, Stainless steel and pipe mill and mild steel tube and pipe mill have enabled us to offer a qualitative range of Steel Tube and pipe Mills Equipment, Stainless steel tube and pipe mill equipment .Stainless steel tube mill, Stainless steel pipe mill, Stainless steel and pipe mill and mild steel tube and pipe mill are manufactured by our experienced professionals using superior forged steel and latest technology, these Stainless steel tube mill, Stainless steel pipe mill, Stainless steel and pipe mill and mild steel tube and pipe mill are mounted in the common steel bed in order to avoid any sort of misalignment. Owing to their excellent performance, robust construction and longer service life, these products are highly demanded by the customers. In addition to this, we provide customization as per the exact specifications laid down by the customers.

The stainless steel pipe making machine is mainly consist of:

Single side / Double side uncoiler
Strip butt welding equipment: Manual welding table or shear and butt welding machine
3 stage roller tube making machine
Forming section
Welding section
Sizing section
Cooling section
Weld bead grinder
Auto - cut off
Run out table
Electric control system
TIG welding machine + cooling equipment/ plasma welding machine + cooling equipment
Rolls made of SKD -11




How the Stainless pipe is made by our SS pipe making machine?

Melting
Stainless steel is one of the world’s most recycled materials, with some 90% of each new batch - or heat - coming from scrap.we use electric arc melting, sophisticated AOD/CLU refining and a specialized ladle treatment that adds additional alloy elements to the steel at precise amounts and temperatures. The high-quality refining and ladling is essential for the downstream production of our corrosion-resistant and heat-resistant special grades.
Continuous production
There are two manufacturing methods for producing pipe. They can be produced from large coils of strip or skelp, which is welded without interruption. This is called continuous production. Or they can be produced in large sizes, one piece at a time, which is called batch production.
The starting material for making continuous pipe is a coil of strip or a skelp with the right thickness and width to make the required pipe size. The strip is formed through a series of rolls to make a completely uniform, circular section.
Our size range includes continuous produced pipe from 1/2 through 14-inch nominal pipe size in Schedules 5, 10, 40, and 80.
Batch production
For batch production, the starting material is plate. Almost all of the stainless steel plate used has high performance, which assures the quality of our starting material.
Our batch-produced pipe covers the size range from 16 inch to 80-inch diameter. In addition to the lighter wall ranges, the batch-produced pipe includes wall thicknesses up to two inches for the largest pipes.
Welding
For batch production, the plate arrives at the pipe mill cut to the correct length and width for the pipe size to be manufactured. First, the edges of the plate are formed to provide for the correct geometry in the weld. Then the whole pipe is roll-formed to provide the cylindrical shell for welding.
After the shell is rolled, the joint is tack welded to hold the shell together until the final welding operation. The shell is then transferred to the welding machine. Our Wildwood facility has several welding machines, each specially designed to perform different types of welding on the inside or outside diameter with or without filler metal according to the specification for the pipe.
In-line bead rolling
In continuous production, each weld is cold worked so that subsequent heat treatment will produce a grain refinement in the weld structure, which provides for a superior profile of the weld in cross section, both inside and out. A rolling mandrel inside the pipe supports the section being rolled, which holds the mandrel in the right place to support the bead working.
Annealing
Annealing recrystallizes the stainless steel’s internal structure, which is altered in the rolling process. In continuous production, pipe is annealed in line followed immediately by water quenching. All continuously produced pipe is in-line annealed.
In batch production, geit anneals cut pipe lengths in a separate furnace. Once the pipe reaches the minimum required annealing temperature it is held for a time proportional to the wall thickness, and then water quenched by placing the pipe in a water tank adjacent to the furnace. To produce a straight pipe with a circular cross section we press the pipe in a die of the correct final size.
Cutting
Continuous pipe is cut in desired lengths by a special device which monitors the length produced and then locks on to the pipe and travels with it to cut off the desired length without interrupting its smooth movement. Each piece of pipe is inscribed with an identification indicating the original heat and lot of coil.
Mechanical straightening
The cold forming, welding, and rapid cooling of continuously produced pipe may produce some distortion, so the next step is a mechanical straightening. GEIT uses several methods, but the most common is cross rolls straightening. This method produces a straight pipe with a uniformly circular cross section with as little deformation as possible.
Testing
Test samples are cut from the pipe as required. The number of samples, their location, and exactly which tests are done vary based on what the customer has requested in the ordering specification. We may be required to test for composition, strength, hardness, toughness, and corrosion resistance. On the pipe itself we also perform a number of non-destructive tests such as hydro, eddy current testing, and x-ray examination to confirm weld integrity.
Pickling
Once the continuously produced pipe has been shown to meet the metallurgical and dimensional requirements of the ordering specification, it is ready for pickling. The pipe is immersed in a nitric hydrofluoric acid solution, which cleans the steel, and removes the oxide formed during annealing. Once the pipe has been thoroughly rinsed it quickly restores its protective, passive film.
Packaging and Shipping
The pipe is now ready for final inspection and marked for packing in accordance with the customer’s specification. After the order has been labeled, it is ready for shipment.


As a professional manufacturer of the Stainless steel pipe making machine, Tube Mill, Moulds/ Roller, Polishing Machine, Slitting Machine, End Facing Machine etc, we have our standard types and we also can provide customized service and professional design based on your specific demands. Please feel free to contact us for your requirements! We will try our best to do the service for you.supply of materials/grades of welded stainless steel pipes.
