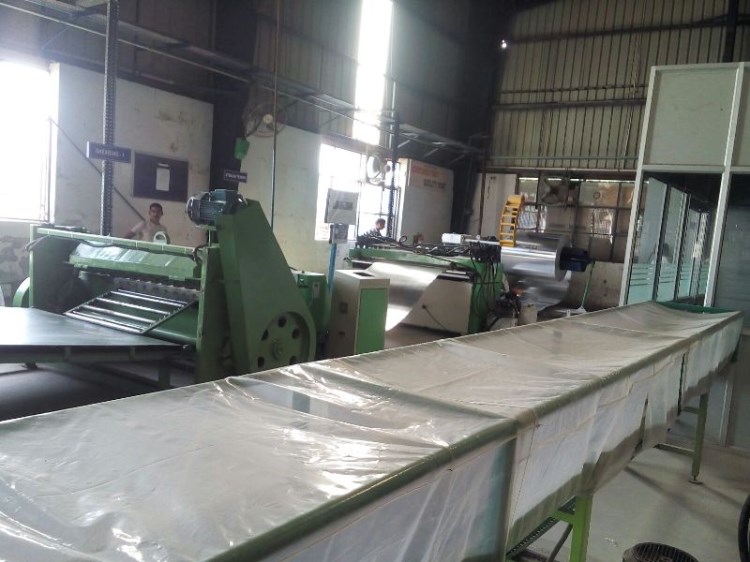

NC servo cut to length line(CTL)
We are engaged in manufacturing, exporting and supplying an excellent quality Cut To Length Line. The offered product is manufactured using top-notch quality raw material and advanced machines. This product is available in standard and customized specifications at affordable prices. Further, our quality controllers firmly check the quality of product as per the set industry standards. Clients can avail this product from us at most reasonable prices.
This product is used for processing both ferrous and non-ferrous material. It is fabricated by our professionals using high grade factor inputs and latest technology in conformity with international quality standards. The offered range is thoroughly tested by our quality controllers in order to ensure its flawlessness.
Materials being processed on our designed Cut to Length Line are:
• Hot Rolled Mild Steel Coils.
• Cold Rolled Mild Steel Coils.
• Stainless Steel Coils.
• Brass/Copper Coils.
• Aluminum Coils.
• C. R. G. O. /C. R. N. G. O. Coils(miter cutting lines for transformer industries.)
Capabilities of GEIT’s Cut-To-Length Line:
Our Cut-To-Length Lines have a feed rate of twenty (20) feet per minute. GEIT’s Cut-To-Length Line is designed to handle one coil of aluminum at a time, and it is fairly easy to enhance. The maximum coil sheet size is 60 inches wide with .060 inch thickness aluminum an a 20 inch core. This Cut-To-Length Line’s linear counter works with the computer control so that the operator can set the length and quantity to be cut at the operator’s panel.
GEIT’s Cut-To-Length Lines are built in two parts. The Leveling Rolls and the Shear are one part and the Run-Out Table is the other part. The Run-Out Table is attached to the Shear with four bolts and clevis pins.
System Requirements for GEIT’s Cut-To-Length Line:
120 Volt or 230 Volt Circuit
3/8” Air Line with 125 lbs. pressure
Dimensions of GEIT’s Cut-To-Length Line:
4’ 8” height
7’ 0” width
8’ 0” length
Features of GEIT’s Cut-To-Length Line:
Linear Counter - operator presets the number and length of sheets to be cut right at the operator’s panel
Machine shuts down when the counter gets to zero
The entire cut-to-length line operates on 20 AMP, 110V circuits
Available Options on GEIT’s Cut-To-Length Line:
Increase speed to 40 feet per minute on 230 Volt model
Run-Out Table in 10 foot or 12 foot length (8 foot standard model)
Add 2 or 3 additional coil arbors (for different colors or thickness of material)
Crimping rolls to bend one or both edges with a slight angle
Cart/Skid to receive cut sheets (fits under Run-Out Table)
Slitter to slit cut sheets lengthwise into as many as 5 pieces (rolls under Run-Out Table)
This series production line has the function of high efficient auto-sizing, which can make various coil trip to different specification via uncoiling, leveling and auto-sizing. It is essential high-efficiency production line for sheet metal processing. Cut to Length Lines is used for uncoiling, straightening, gauging, cross-cutting to length and stacking work. It perform a variety of operational functions including cut sheet leveling, edge trim (if required), cut to length and stack sheets and plates. The cut to length line can make sure of accurate feeding and shearing. It can be widely used in cold or hot rolling carbon steel, tinplate, stainless steel and all the other kinds of metal materials with surface coating.
Cut to length line machine is controlled by PLC system or manually as required by the customer. All mechanical moving of this series is controlled centrally by imported high-performance PLC grogrammable system to control the whole procedure. In addition, equipped with high precision sevomotor and CNC system to ensure the precision, reliable hydraulic system to insure feeding and shearing accuracy. When the need shearing number is reached the line can stop automatically. The line speed can be adjusted. It has a gauge with high precision, and whole line can work automatically and operate easily there by producing smooth sheets. Various Components are included in Cut To Length Machines like coil car, entry support device, width adjustor device ,straightening machine, gauge table, shearing machine, run out table, pneumatic discharge and stacker device, unloading table, pneumatic system.
